Photographic Standards for Real-Time Rendering

Comprehensive guide to values and photographic concepts used in modern game engines and tone mapping.

📸 The 18% Middle Gray - The Cornerstone

Photographic Origin

18% gray (0.18 in linear space) has been the universal standard of photometry since the 1940s.

Value: 0.18 (linear) = 18% reflectance
sRGB: ~119/255 = 0.466
Hex: #777777

Why 18%?

  1. Human Perception: Our eye perceives 18% reflectance as a neutral "middle tone".
  2. Statistical Average: The majority of real-world scenes have an average reflectance of ~12-20%.
  3. Ansel Adams' Zone System: Zone V (middle of the 0-X scale) = 18%.

Applications

  • Gray cards for camera calibration.
  • Light meters calibrated to 18% to calculate correct exposure.
  • Lightroom/Photoshop: Target for auto-exposure.
  • Unreal Engine, Unity: Default Key value for eye adaptation.

🎚️ Photographic Values Scale

Exposure Values (EV)

The EV scale measures the quantity of light:

EV Condition Luminance (cd/m²) Rendering Usage
-6 Moonlight 0.001 Very dark scenes
-4 Dimly lit interior 0.01 Dungeons, caves
0 Lit interior 1.0 Standard rooms
+4 Outdoor shadow 16 Shaded outdoor scenes
+10 Full sunlight 1,000 Sunny day
+15 Snow in sunlight 32,000 Very bright environments
+20 Direct Sun (surface) 1,000,000 Extreme HDR

Visual EV Scale

Graphviz Diagram

Auto-Exposure Formula

targetExposure = keyValue / sceneLuminance

Examples (with keyValue = 0.18):

  • Dark scene (0.01 cd/m²) → Exposure = 18.0 (boost ×18)
  • Middle gray (0.18 cd/m²) → Exposure = 1.0 (neutral)
  • Bright scene (10 cd/m²) → Exposure = 0.018 (attenuation)

🌈 Material Reflectance Values

Standard Albedos (Physically Based)

Material Reflectance Linear sRGB (8-bit)
Charcoal 4% 0.04 61
Dark Skin 12% 0.12 105
18% Gray Card 18% 0.18 119
Light Skin 35% 0.35 160
Concrete 50% 0.50 186
Fresh Snow 90% 0.90 241
Maximum (Physical) 100% 1.0 255

⚠️ In PBR, albedos exceeding 0.90 are non-physical (except for special materials).

📊 Tone Mapping - Standard Curves

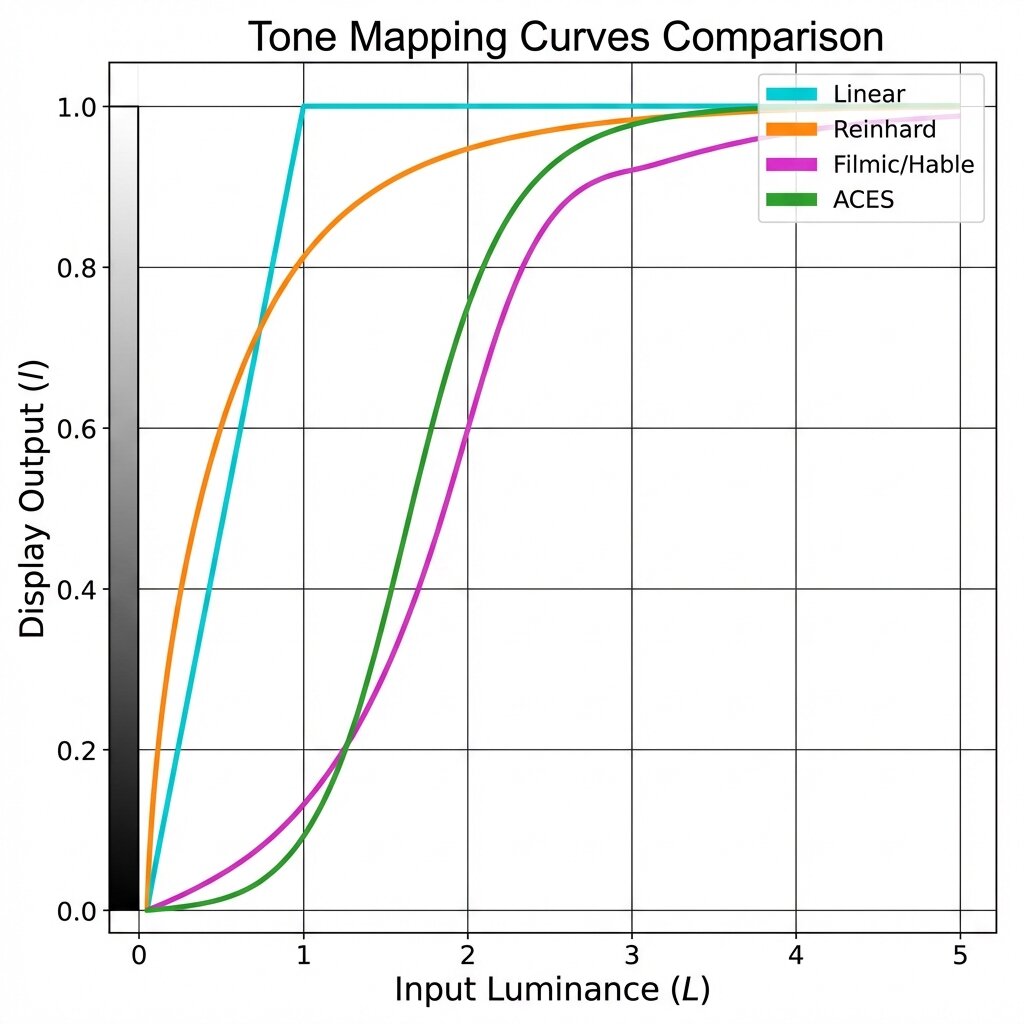

Tone Mapping Curves Comparison

1. Linear (Naive)

output = input * exposure

Problem: Brutal clipping at 1.0, loss of HDR details.

2. Reinhard (Simple)

output = input / (input + 1.0)

Pros: Soft compression, never clips. Cons: Desaturates colors too much.

3. Uncharted 2 / Hable (Filmic)

// Reproduces film response
vec3 FilmicToneMapping(vec3 x) {
    float A = 0.15; // Shoulder strength
    float B = 0.50; // Linear strength
    float C = 0.10; // Linear angle
    float D = 0.20; // Toe strength
    float E = 0.02; // Toe numerator
    float F = 0.30; // Toe denominator

    return ((x * (A * x + C * B) + D * E) /
            (x * (A * x + B) + D * F)) - E / F;
}

Features: - Toe: Lifts shadows. - Shoulder: Compresses highlights. - Linear section: Preserves mid-tones.

4. ACES (Academy Color Encoding System)

THE Hollywood Standard (default in Unreal Engine).

vec3 ACESFilm(vec3 x) {
    float a = 2.51;
    float b = 0.03;
    float c = 2.43;
    float d = 0.59;
    float e = 0.14;
    return clamp((x * (a * x + b)) / (x * (c * x + d) + e), 0.0, 1.0);
}

Pros: - Preserves saturated colors. - Smooth transition to white. - Industry standard (Movies, AAA Games).

Auto-Exposure Settings

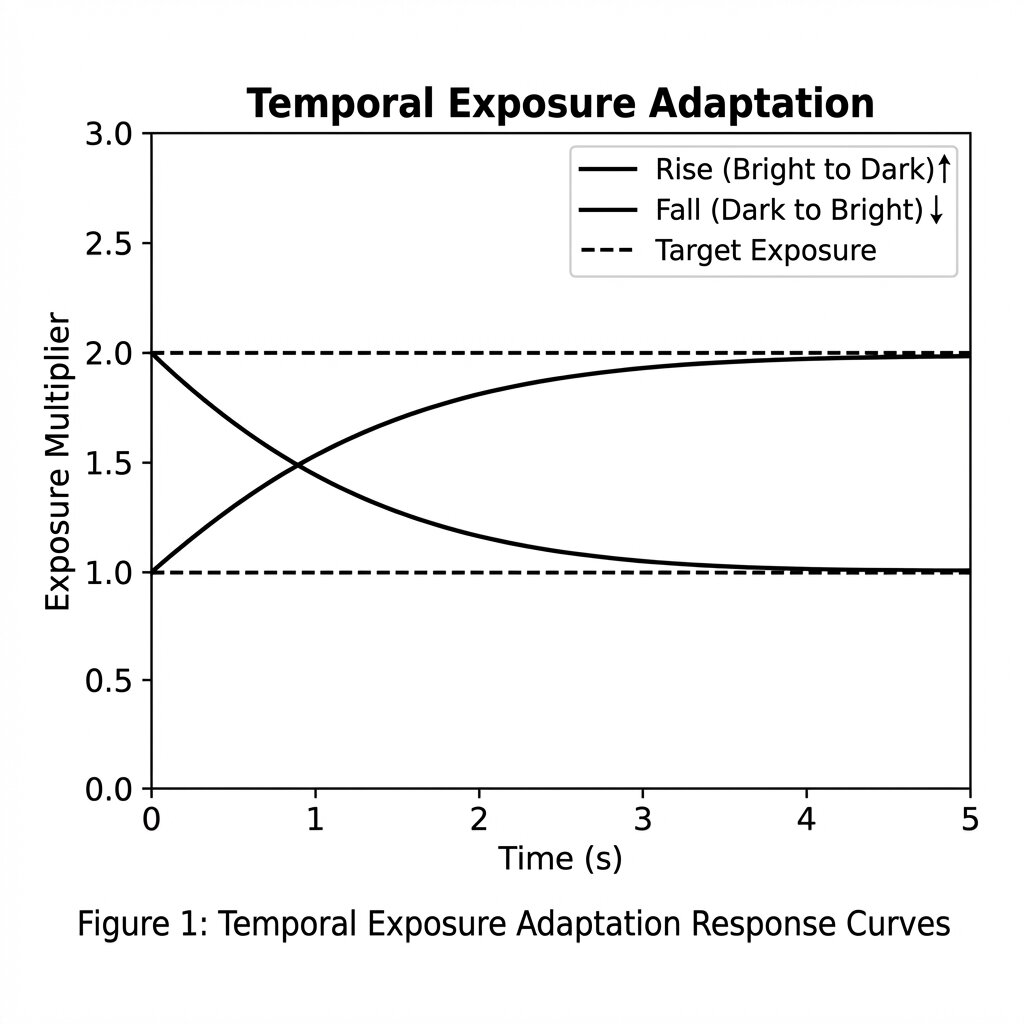

Temporal Adaptation Curves

Parameter Conservative Value Dynamic Value Usage
keyValue 0.18 0.14 - 0.20 Standard / Fast FPS
minLuminance 1.0 0.5 - 2.0 No boost / Dungeons
maxLuminance 5000 1000 - 10000 Daylight / Extreme HDR
speedUp 2.0 1.0 - 3.0 Slow / Fast Adaptation
speedDown 1.0 0.5 - 2.0 Pupil Adaptation

Examples by Genre

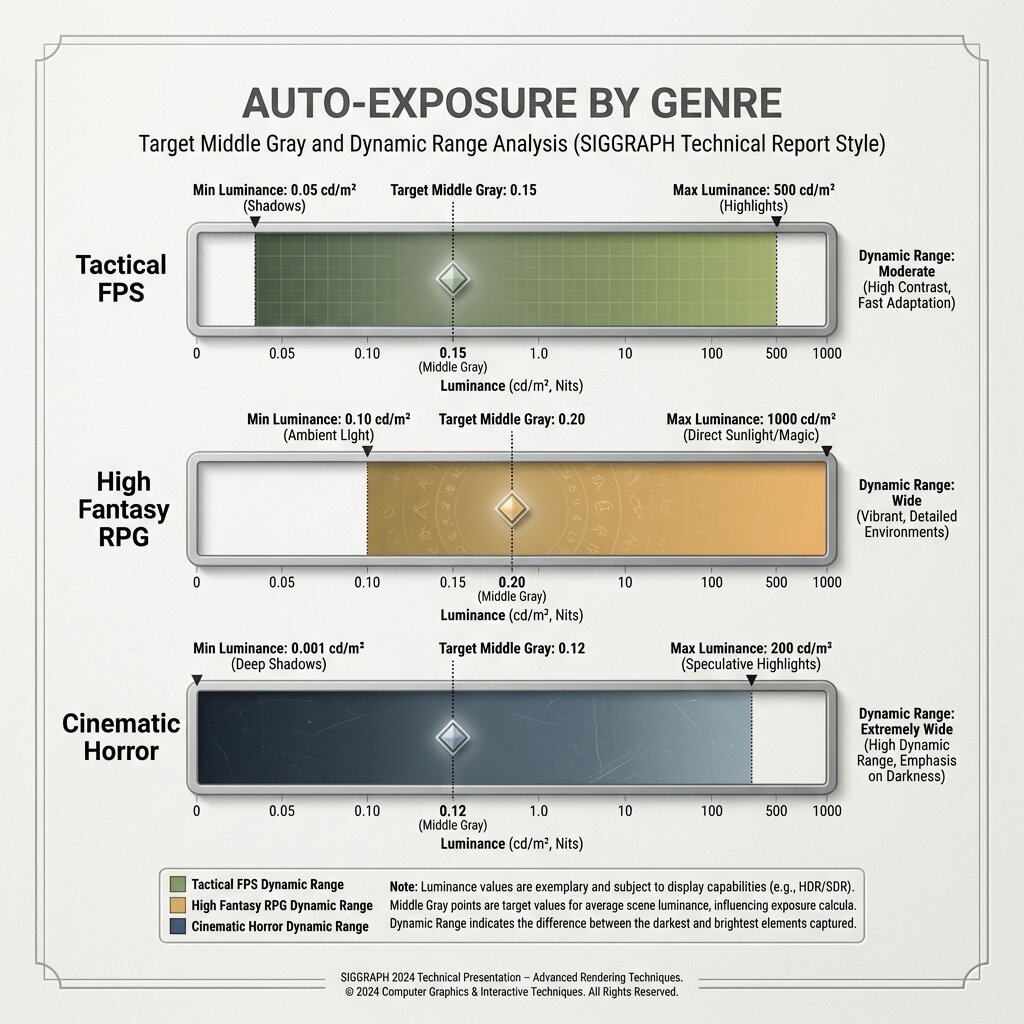

Auto-Exposure Comparison by Genre

Realistic FPS (like Call of Duty)

keyValue = 0.15        // Slightly darker (tactical)
minLuminance = 0.8
maxLuminance = 8000
speedUp = 3.0          // Fast adaptation (gameplay)
speedDown = 1.5

Fantasy RPG (like Skyrim)

keyValue = 0.20        // Brighter (exploration)
minLuminance = 0.5     // Boost for dungeons
maxLuminance = 10000   // Magic HDR sky
speedUp = 1.5          // Soft adaptation
speedDown = 1.0

Horror (like Resident Evil)

keyValue = 0.12        // Very dark (atmosphere)
minLuminance = 2.0     // No boost (oppressive)
maxLuminance = 1000
speedUp = 0.5          // Very slow adaptation
speedDown = 2.0        // Fast return to black

🔧 Interesting Alternative Values

Key Value Alternatives

Value Name Effect Usage
0.18 Photographic Standard Neutral, balanced Universal default
0.14 Unreal Engine (UE⅘) Slightly darker AAA Games
0.12 Low-Key Dark, dramatic Cinematic, Horror
0.25 High-Key Bright, airy Cartoon, Light Fantasy
0.50 Very High-Key Very bright Artistic overexposure

Middle Gray in sRGB

Warning: 18% linear ≠ 18% sRGB!

Linear 0.18  → sRGB 0.466  (gamma 2.2)
Linear 0.18  → 8-bit ~119

Common Trap: Using 0.18 directly in sRGB results in a gray that is too dark!

📐 Useful Formulas

Luminance Conversion

// Rec. 709 (HD TV standard)
float luminance_709 = dot(color.rgb, vec3(0.2126, 0.7152, 0.0722));

// Alternative (Rec. 601 - SD TV)
float luminance_601 = dot(color.rgb, vec3(0.299, 0.587, 0.114));

EV ↔ Luminance Conversion

float ev_val = log2(luminance_val);
float luminance_res = exp2(ev_val);

Temporal Adaptation

float adaptationSpeed = (target > current) ? speedUp : speedDown;
float factor = 1.0 - exp(-deltaTime * adaptationSpeed);
float newExposure = mix(current, target, factor);

🎨 Practical Workflow

1. Initial Calibration

// Start with neutral values
keyValue = 0.18
minLuminance = 1.0
maxLuminance = 5000.0

2. Test with Type Scenes

  • Dark Interior: Check boost isn't excessive.
  • Outdoor Day: Check for no over-exposure.
  • Rapid Transition: Adjust adaptation speeds.

3. Artistic Tweaking

  • Too bright → Reduce keyValue (0.14 - 0.16)
  • Too dark → Increase keyValue (0.20 - 0.25)
  • Flashy/Unstable → Reduce speedUp/Down
  • Too slow → Increase speedUp
  1. Film Lighting Simulator (Unreal Engine docs)
  2. "Physically Based Rendering" - Matt Pharr, Greg Humphreys
  3. Tone Mapping Comparison - John Hable (Filmic Worlds blog)
  4. ACES Documentation - Academy of Motion Picture Arts
  5. "Real Shading in Unreal Engine 4" - Brian Karis (SIGGRAPH 2013)

✨ Bonus: Exotic Values

Lunar Scenes

keyValue = 0.09       // Scotopic adaptation (rods)
minLuminance = 5.0    // No boost, night vision

Underwater

keyValue = 0.22       // Light diffusion compensation
speedUp = 0.3         // Very slow adaptation (water)

Space

minLuminance = 10.0   // Extreme contrast
maxLuminance = 100000 // Direct sunlight without atmosphere

🎨 Gamut Mapping & 3D LUTs

Color Spaces & Gamuts

Modern cinema cameras capture light in wide-gamut log spaces to preserve maximum dynamic range.

Standard Dynamic Range Primary Usage
Rec.709 ~6 stops Standard TV / Web
DCI-P3 ~12 stops Digital Cinema / HDR
S-Gamut3.Cine ~15 stops Sony Cinema Cameras (A7S III, Venice)
Arri LogC ~14+ stops Arri Alexa Standard

3D LUT (Look-Up Table)

A 3D LUT is a \(N^3\) cube of colors used to transform a source gamut (e.g., S-Log3) into a target "look" or standard (e.g., Rec.709).

  • Technical LUT: Exact mathematical conversion between color spaces.
  • Creative LUT: Artistic grading (Teal & Orange, Film Emulation).

Sony S-Log3 / S-Gamut3.Cine

Used in our Sony A7S III profile. It maps linear light to a logarithmic curve to optimize data distribution in deep shadows and bright highlights.

// Simplified S-Log3 decoding (emulated by LUT)
if (x < 0.01125) {
    y = (x - 0.01) / 3.5;
} else {
    y = (log10((x + 0.01) / 0.1) + 0.1) / 1.0;
}
In suckless-ogl, we use Hardware-Accelerated 3D LUTs (GL_TEXTURE_3D) for near-zero cost gamut mapping.
