Anatomy of a Frame: The Complete Lifecycle of suckless-ogl

From main() to photons on screen — a full deep-dive into a modern OpenGL PBR engine written in C.

Introduction

suckless-ogl is a minimalist, high-performance PBR (Physically-Based Rendering) engine written in C11 with OpenGL 4.4 Core Profile. It displays a grid of 100 spheres with varied materials (metals, dielectrics, paints, organics…) lit by Image-Based Lighting (IBL), with a full post-processing pipeline: bloom, depth of field, motion blur, FXAA, tone mapping, color grading…

This article traces the complete lifecycle of the application: from the first byte allocated in main() to the moment the GPU presents the first fully-lit frame on screen. We'll walk through every layer — CPU memory, GPU resources, the X11/GLFW windowing handshake, OpenGL context creation, shader compilation, async texture loading, and the multi-pass rendering architecture that produces each frame.

What We'll Cover

Chapter 1 — The Entry Point

Everything begins in main() (src/main.c):

int main(int argc, char* argv[])
{
    tracy_manager_init_global();          // 1. Profiler bootstrap

    CliAction action = cli_handle_args(argc, argv);  // 2. CLI parsing
    if (action == CLI_ACTION_EXIT_SUCCESS) return EXIT_SUCCESS;
    if (action == CLI_ACTION_EXIT_FAILURE) return EXIT_FAILURE;

    // 3. SIMD-aligned allocation of the App structure
    App* app = (App*)platform_aligned_alloc(sizeof(App), SIMD_ALIGNMENT);
    *app = (App){0};

    // 4. Full initialization
    if (!app_init(app, WINDOW_WIDTH, WINDOW_HEIGHT, "Icosphere Phong"))
        { app_cleanup(app); platform_aligned_free(app); return EXIT_FAILURE; }

    // 5. Main loop
    app_run(app);

    // 6. Cleanup
    app_cleanup(app);
    platform_aligned_free(app);
    return EXIT_SUCCESS;
}

The design is intentionally simple — all complexity is encapsulated in app_init() → app_run() → app_cleanup().

Design Decisions

graph TD
    A("🚀 main()") --> B("app_init()")
    B --> B1("Window + OpenGL Context")
    B --> B2("Camera & Input")
    B --> B3("Scene — GPU Resources")
    B --> B4("Async Loader Thread")
    B --> B5("Post-Processing Pipeline")
    B --> B6("Profiling Systems")
    B1 & B2 & B3 & B4 & B5 & B6 --> C("app_run() — Main Loop")
    C --> C1("Poll Events")
    C1 --> C2("Camera Physics")
    C2 --> C3("renderer_draw_frame()")
    C3 --> C4("SwapBuffers")
    C4 -->|"next frame"| C1
    C --> D("app_cleanup()")
    D --> E("🏁 End")

    classDef entryExit fill:#fce4ec,stroke:#c2185b,stroke-width:2.5px,color:#2d2d2d
    classDef keyFunc fill:#fff59d,stroke:#f9a825,stroke-width:2px,color:#2d2d2d
    classDef subsystem fill:#ffffff,stroke:#aaaaaa,stroke-width:1.5px,color:#444444
    classDef loopNode fill:#e3f2fd,stroke:#42a5f5,stroke-width:1.5px,color:#2d2d2d

    class A,E entryExit
    class B,C,D keyFunc
    class B1,B2,B3,B4,B5,B6 subsystem
    class C1,C2,C3,C4 loopNode

Chapter 2 — Opening a Window (GLFW + X11 + OpenGL)

The first real work happens in window_create() (src/window.c).

2.1 — GLFW Initialization and Window Hints

glfwInit();
glfwWindowHint(GLFW_CONTEXT_VERSION_MAJOR, 4);
glfwWindowHint(GLFW_CONTEXT_VERSION_MINOR, 4);          // OpenGL 4.4
glfwWindowHint(GLFW_OPENGL_PROFILE, GLFW_OPENGL_CORE_PROFILE);
glfwWindowHint(GLFW_OPENGL_DEBUG_CONTEXT, GL_TRUE);     // Debug messages
glfwWindowHint(GLFW_SAMPLES, DEFAULT_SAMPLES);           // MSAA = 1 (off)

Behind the scenes, GLFW performs a full X11 handshake:

sequenceDiagram
    participant App as Application
    participant GLFW as GLFW
    participant X11 as X11 Server
    participant Mesa as Mesa/GPU Driver
    participant GPU as GPU

    App->>GLFW: glfwInit()
    GLFW->>X11: XOpenDisplay()
    X11-->>GLFW: Display* (connection)

    App->>GLFW: glfwCreateWindow(1920, 1080)
    GLFW->>X11: XCreateWindow() + GLX setup
    X11->>Mesa: glXCreateContextAttribsARB(4.4 Core, Debug)
    Mesa->>GPU: Allocate command buffer + context state
    Mesa-->>X11: GLXContext
    X11-->>GLFW: Window + Context ready

    App->>GLFW: glfwMakeContextCurrent()
    GLFW->>Mesa: glXMakeCurrent()
    Mesa->>GPU: Bind context to calling thread

2.2 — GLAD: Loading OpenGL Function Pointers

gladLoadGLLoader((GLADloadproc)glfwGetProcAddress);

OpenGL is not a library in the traditional sense — it's a specification. The actual function addresses live inside the GPU driver (Mesa, NVIDIA, AMD). GLAD queries each address at runtime via glXGetProcAddress and populates a function pointer table. After this call, glCreateShader, glDispatchCompute, etc. become usable.

2.3 — OpenGL Debug Context

setup_opengl_debug();

This enables GL_DEBUG_OUTPUT_SYNCHRONOUS and registers a callback that intercepts every GL error, warning, and performance hint. A hash table deduplicates messages (log only first occurrence).

2.4 — Input Capture and VSync

glfwSwapInterval(0);                    // VSync OFF — unlimited FPS
glfwSetInputMode(app->window, GLFW_CURSOR, GLFW_CURSOR_DISABLED);  // FPS-style

The cursor is captured in relative mode — mouse movements produce delta offsets for orbit camera control.

Chapter 3 — CPU-Side Initialization

Before touching the GPU, several CPU-side systems are bootstrapped.

3.1 — The Orbit Camera

camera_init(&app->camera, 20.0F, -90.0F, 0.0F);

The camera starts at:

• Distance: 20 units from the origin
• Yaw: −90° (looking along −Z)
• Pitch: 0° (horizon level)
• FOV: 60° vertical
• Z-clip: [0.1, 1000.0]

It uses a fixed-timestep physics model (60 Hz) with exponential smoothing for rotation:

graph LR
    subgraph "Camera Update Pipeline"
        A("Mouse Delta") -->|"EMA filter"| B("yaw_target / pitch_target")
        B -->|"Lerp α=0.1"| C("yaw / pitch (smoothed)")
        C --> D("camera_update_vectors()")
        D --> E("front, right, up vectors")
        E --> F("View Matrix (lookAt)")
    end

    subgraph "Physics (Fixed 60Hz)"
        G("WASD Keys") --> H("Target Velocity")
        H -->|"acceleration × dt"| I("Current Velocity")
        I -->|"friction"| J("Position += vel × dt")
        J --> K("Head bobbing (sine wave)")
    end

    classDef keyFunc fill:#fff59d,stroke:#f9a825,stroke-width:2px,color:#2d2d2d
    classDef subsystem fill:#ffffff,stroke:#aaaaaa,stroke-width:1.5px,color:#444444
    classDef loopNode fill:#e3f2fd,stroke:#42a5f5,stroke-width:1.5px,color:#2d2d2d

    class D,F keyFunc
    class A,B,C,E subsystem
    class G,H,I,J,K loopNode

3.2 — Async Loader Thread

app->async_loader = async_loader_create(&app->tracy_mgr);

A dedicated POSIX thread is spawned for background I/O. It sleeps on a condition variable (pthread_cond_wait) until work is queued. This prevents disk reads from stalling the render loop.

stateDiagram-v2
    [*] --> IDLE
    IDLE --> PENDING: async_loader_request()
    PENDING --> LOADING: Worker wakes up
    LOADING --> WAITING_FOR_PBO: I/O complete, needs GPU buffer
    WAITING_FOR_PBO --> CONVERTING: Main thread provides PBO
    CONVERTING --> READY: SIMD Float→Half conversion done
    READY --> IDLE: Main thread consumes result

Chapter 4 — Scene Initialization (The GPU Wakes Up)

scene_init() (src/scene.c) is where the GPU gets its first real work.

4.1 — Default Scene State

scene->subdivisions    = 3;                     // Icosphere level 3
scene->wireframe       = 0;                     // Solid fill
scene->show_envmap     = 1;                     // Skybox visible
scene->billboard_mode  = 1;                     // Transparent spheres (billboard)
scene->sorting_mode    = SORTING_MODE_GPU_BITONIC;  // GPU sorting
scene->gi_mode         = GI_MODE_OFF;           // No GI
scene->specular_aa_enabled = 1;                 // Curvature-based AA

4.2 — Dummy Textures and BRDF LUT

Two sentinel textures are created immediately — they serve as fallbacks whenever an IBL texture isn't ready:

scene->dummy_black_tex = render_utils_create_color_texture(0.0, 0.0, 0.0, 0.0);  // 1×1 RGBA
scene->dummy_white_tex = render_utils_create_color_texture(1.0, 1.0, 1.0, 1.0);  // 1×1 RGBA

Then the BRDF LUT (Look-Up Table) is generated once via compute shader:

scene->brdf_lut_tex = build_brdf_lut_map(512);

This texture maps (NdotV, roughness) → (F0_scale, F0_bias) and is used every frame by the PBR fragment shader to avoid expensive real-time BRDF integration.

4.3 — Two Rendering Modes: Billboard Ray-Tracing vs. Icosphere Mesh

The engine supports two sphere rendering strategies. The default is billboard ray-tracing.

Default: Billboard + Per-Pixel Ray-Tracing (billboard_mode = 1)

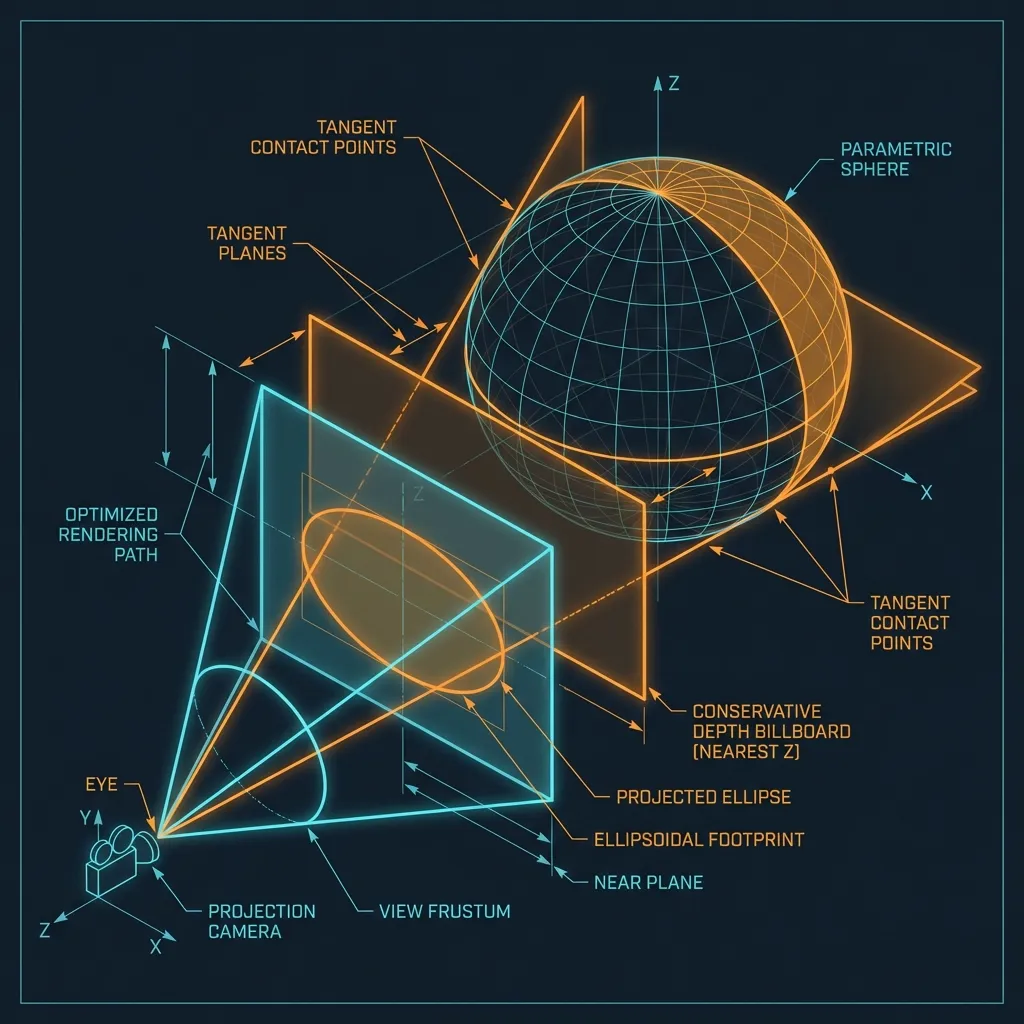

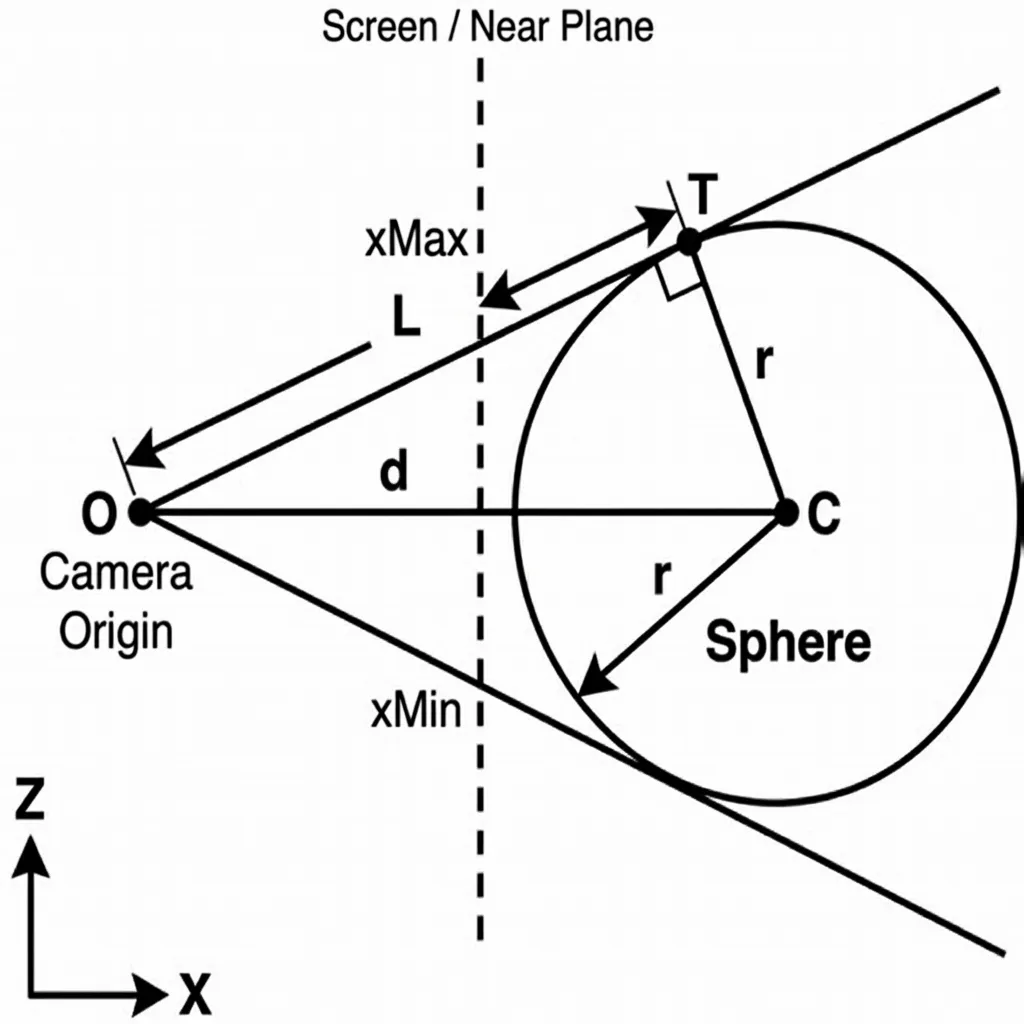

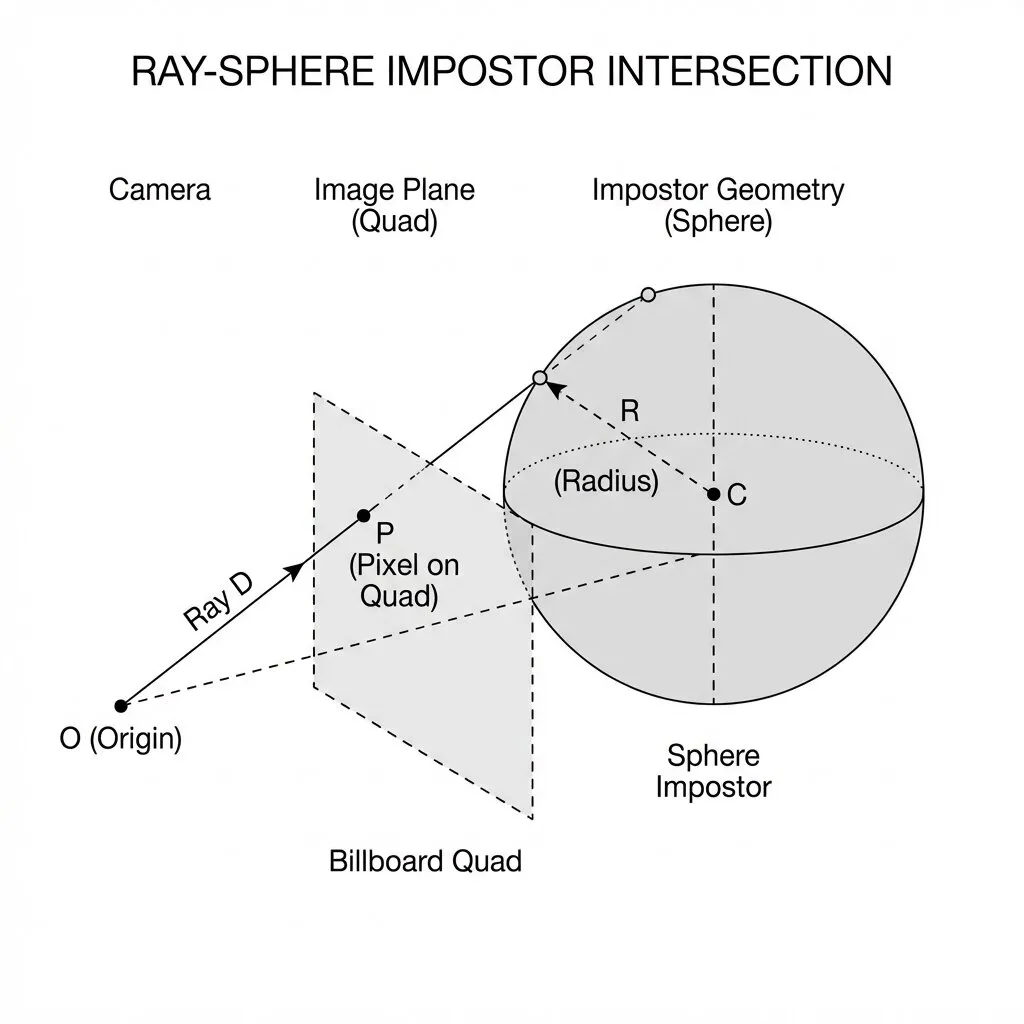

Each sphere is rendered as a single screen-aligned quad (4 vertices, 2 triangles). The fragment shader performs an analytical ray-sphere intersection per pixel, producing mathematically perfect spheres.

Advantages:

• Pixel-perfect silhouettes (no polygon faceting, ever)
• Correct per-pixel depth (gl_FragDepth written from the ray hit point)
• Analytically smooth normals (normalized hitPos − center)

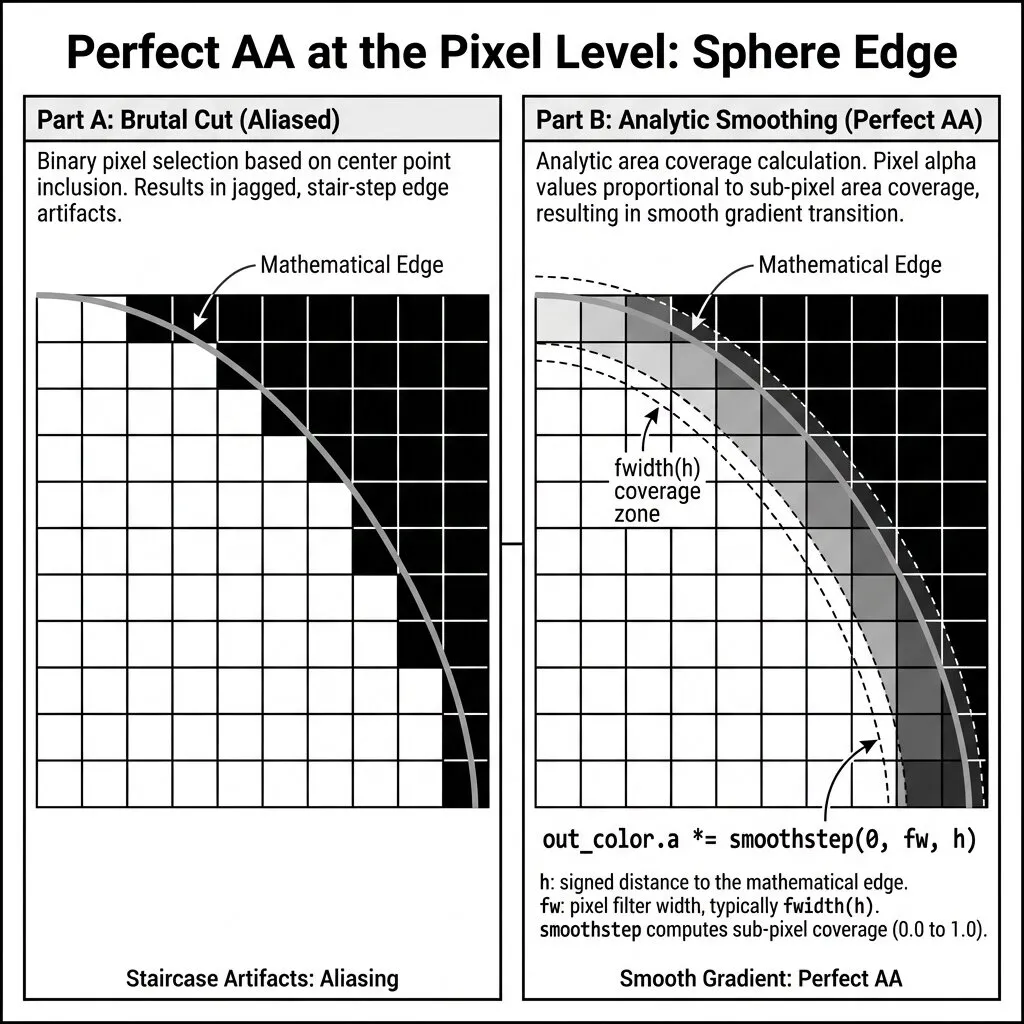

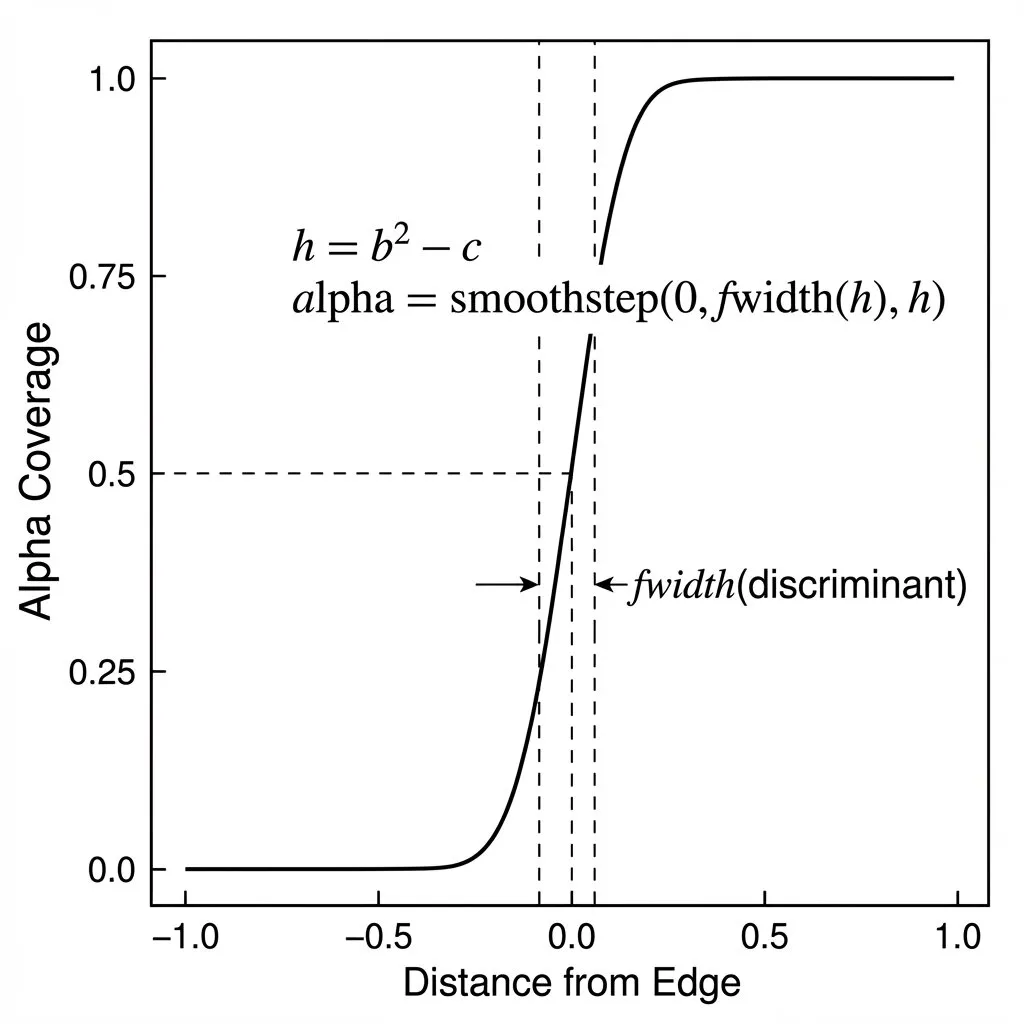

• Edge anti-aliasing via smooth discriminant falloff
• True alpha transparency (glass-like, with back-to-front sorting)

graph LR
    subgraph "Billboard Ray-Tracing (Default)"
        A("4-vertex Quad
(per instance)") -->|"Vertex Shader:
project to sphere bounds"| B("Screen-space quad")
        B -->|"Fragment Shader:
ray-sphere intersection"| C("Perfect sphere
per-pixel normal + depth")
    end

    subgraph "Icosphere Mesh (Fallback)"
        D("642-vertex mesh
(subdivided icosahedron)") -->|"Rasterized as
triangles"| E("Polygon approximation
(faceted at low subdiv)")
    end

    classDef highlight fill:#fff59d,stroke:#f9a825,stroke-width:2px,color:#2d2d2d
    classDef fallback fill:#f5f5f5,stroke:#bdbdbd,stroke-width:1.5px,color:#666666

    class A,B,C highlight
    class D,E fallback

💡 Why Billboard Ray-Tracing? With 100 spheres, the billboard approach uses 100 × 4 = 400 vertices total, versus 100 × 642 = 64,200 vertices for level-3 icospheres. More importantly, the spheres are mathematically perfect at every zoom level — no tessellation artifacts.

Fallback: Instanced Icosphere Mesh (billboard_mode = 0)

The icosphere path generates a recursively subdivided icosahedron:

graph LR
    A("Level 0
12 vertices
20 triangles") -->|"Subdivide"| B("Level 1
42 vertices
80 triangles")
    B -->|"Subdivide"| C("Level 2
162 vertices
320 triangles")
    C -->|"Subdivide"| D("Level 3
642 vertices
1,280 triangles")
    D -->|"..."| E("Level 6
~40k vertices")

    classDef keyFunc fill:#fff59d,stroke:#f9a825,stroke-width:2px,color:#2d2d2d
    classDef subsystem fill:#ffffff,stroke:#aaaaaa,stroke-width:1.5px,color:#444444

    class D keyFunc
    class A,B,C,E subsystem

4.4 — Material Library

scene->material_lib = material_load_presets("assets/materials/pbr_materials.json");

The JSON file defines 101 PBR material presets organized by category:

Each material provides: albedo (RGB), metallic (0–1), roughness (0–1).

4.5 — The Instance Grid

const int cols    = 10;       // DEFAULT_COLS
const float spacing = 2.5F;   // DEFAULT_SPACING

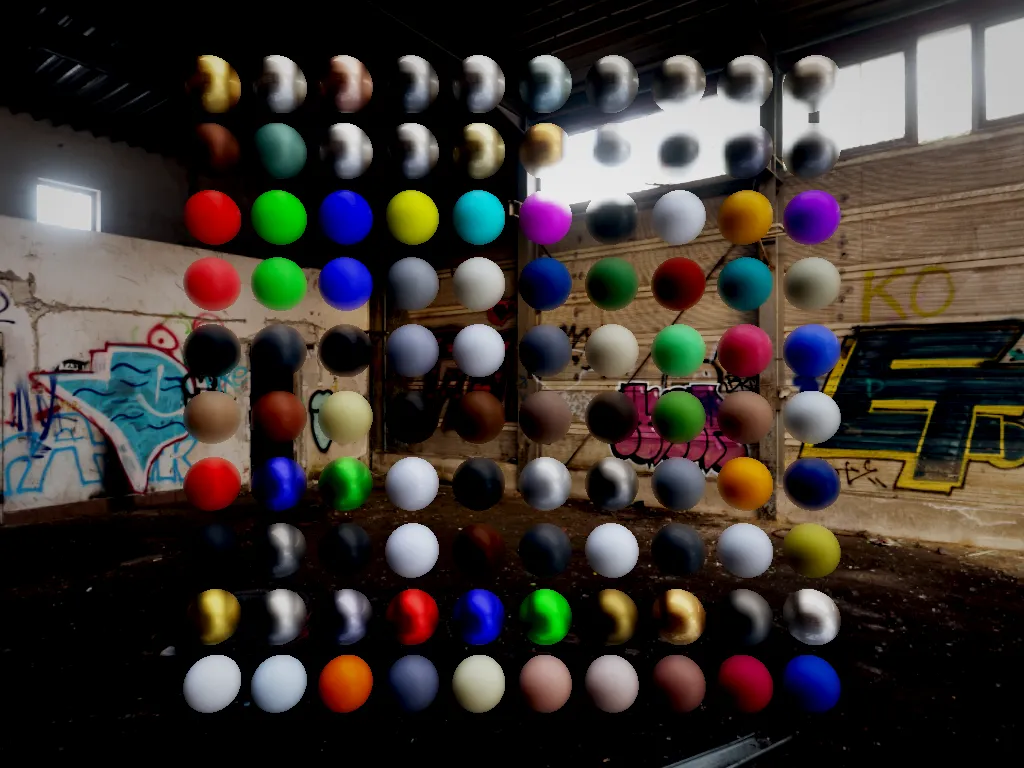

A 10×10 grid of 100 spheres is laid out in the XY plane, centered at the origin:

Grid dimensions:
  Width  = (10 - 1) × 2.5 = 22.5 units
  Height = (10 - 1) × 2.5 = 22.5 units
  Z = 0 (all spheres in the same plane)

Each instance stores 88 bytes:

typedef struct SphereInstance {
    mat4  model;      // 64 bytes — 4×4 transform matrix
    vec3  albedo;     // 12 bytes — RGB color
    float metallic;   //  4 bytes
    float roughness;  //  4 bytes
    float ao;         //  4 bytes — always 1.0
} SphereInstance;     // Total: 88 bytes per instance

4.6 — VAO Layout (Billboard Mode)

In billboard mode, the VAO binds a 4-vertex quad and per-instance material data:

┌────────────────────────────────────────────────────────────────┐
│              Billboard VAO (Default Rendering Mode)            │
├────────────┬────────────┬─────────────────────────────────────┤
│  Location  │  Source    │  Description                        │
├────────────┼────────────┼─────────────────────────────────────┤
│  0         │  Quad VBO  │  vec3 position   (±0.5 quad verts)  │
│  1         │  Quad VBO  │  vec3 normal     (stub, unused)     │
│  2–5       │  Inst VBO  │  mat4 model      (per-instance)     │
│  6         │  Inst VBO  │  vec3 albedo     (per-instance)     │
│  7         │  Inst VBO  │  vec3 pbr (M,R,AO) (per-instance)   │
└────────────┴────────────┴─────────────────────────────────────┘

Location 0–1: glVertexAttribDivisor = 0 (advance per vertex, 4 verts)
Location 2–7: glVertexAttribDivisor = 1 (advance per instance)

Draw call: glDrawArraysInstanced(GL_TRIANGLE_STRIP, 0, 4, 100) — 100 quads, face culling disabled.

4.7 — Shader Compilation

All shaders are compiled during scene_init(). The loader (src/shader.c) supports a custom @header include system:

// In pbr_ibl_instanced.frag:
@header "pbr_functions.glsl"
@header "sh_probe.glsl"

This recursively inlines files (max depth: 16) with include-guard deduplication.

graph TD
    INIT("scene_init() — Shader Compilation") --> REND
    INIT --> COMP
    INIT --> POST

    subgraph REND ["🎨 Rendering Programs"]
        direction TB
        PBR("PBR Instanced — pbr_ibl_instanced.vert/.frag")
        BB("PBR Billboard — pbr_ibl_billboard.vert/.frag")
        SKY("Skybox — background.vert/.frag")
        UI("UI Overlay — ui.vert/.frag")
    end

    subgraph COMP ["⚡ Compute Shaders"]
        direction TB
        SPMAP("Specular Prefilter — IBL/spmap.glsl")
        IRMAP("Irradiance Conv. — IBL/irmap.glsl")
        BRDF("BRDF LUT — IBL/spbrdf.glsl")
        LUM("Luminance Reduction — IBL/luminance_reduce")
    end

    subgraph POST ["✨ Post-Process"]
        direction TB
        PP("Final Composite — postprocess.vert/.frag")
        BL("Bloom — down/up/prefilter")
    end

    classDef keyFunc fill:#fff59d,stroke:#f9a825,stroke-width:2px,color:#2d2d2d
    classDef render fill:#e3f2fd,stroke:#42a5f5,stroke-width:1.5px,color:#2d2d2d
    classDef compute fill:#f3e5f5,stroke:#ab47bc,stroke-width:1.5px,color:#2d2d2d
    classDef postfx fill:#fce4ec,stroke:#c2185b,stroke-width:1.5px,color:#2d2d2d

    class INIT keyFunc
    class PBR,BB,SKY,UI render
    class SPMAP,IRMAP,BRDF,LUM compute
    class PP,BL postfx

Chapter 5 — Post-Processing Pipeline Setup

postprocess_init(&app->postprocess, &app->gpu_profiler, 1920, 1080);

5.1 — The Scene FBO (Multi-Render Target)

The main offscreen framebuffer uses MRT (Multiple Render Targets):

graph TD
    FBO("Scene FBO — Multi-Render Target") --> C0
    FBO --> C1
    FBO --> DS
    DS --> SV

    C0("🟦 Color 0 — GL_RGBA16F
HDR Scene Color")
    C1("🟩 Color 1 — GL_RG16F
Velocity Vectors")
    DS("🟫 Depth/Stencil — GL_DEPTH32F_STENCIL8")
    SV("🟪 Stencil View — GL_R8UI (TextureView)")

    classDef keyFunc fill:#fff59d,stroke:#f9a825,stroke-width:2px,color:#2d2d2d
    classDef color0 fill:#e3f2fd,stroke:#42a5f5,stroke-width:1.5px,color:#2d2d2d
    classDef color1 fill:#e8f5e9,stroke:#66bb6a,stroke-width:1.5px,color:#2d2d2d
    classDef depth fill:#fff3e0,stroke:#ff9800,stroke-width:1.5px,color:#2d2d2d
    classDef stencil fill:#f3e5f5,stroke:#ab47bc,stroke-width:1.5px,color:#2d2d2d

    class FBO keyFunc
    class C0 color0
    class C1 color1
    class DS depth
    class SV stencil

5.2 — Sub-Effect Resources

Each post-processing effect initializes its own resources:

5.3 — Default Active Effects

postprocess_enable(&app->postprocess, POSTFX_FXAA);  // Only FXAA

On startup, only FXAA is active. Other effects are toggled at runtime via keyboard shortcuts.

Chapter 6 — The First HDR Environment Load

env_manager_load(&app->env_mgr, app->async_loader, "env.hdr");

This triggers the asynchronous environment loading pipeline — the most complex multi-frame operation in the engine.

6.1 — Async Loading Sequence

sequenceDiagram
    participant Main as Main Thread (Render)
    participant Worker as Async Worker Thread
    participant GPU as GPU

    Main->>Worker: async_loader_request("env.hdr")
    Note over Worker: State: PENDING → LOADING
    Worker->>Worker: stbi_loadf() — decode HDR to float RGBA
    Note over Worker: ~50ms for 2K HDR on NVMe

    Worker-->>Main: State: WAITING_FOR_PBO
    Main->>GPU: glGenBuffers() → PBO
    Main->>GPU: glMapBuffer(PBO, WRITE)
    Main-->>Worker: async_loader_provide_pbo(pbo_ptr)

    Note over Worker: State: CONVERTING
    Worker->>Worker: SIMD float32 → float16 conversion
    Note over Worker: ~2ms for 2048×1024

    Worker-->>Main: State: READY
    Main->>GPU: glUnmapBuffer(PBO)
    Main->>GPU: glTexSubImage2D(from PBO)
    Note over GPU: DMA transfer: PBO → VRAM
    Main->>GPU: glGenerateMipmap()

6.2 — Transition State Machine

During the first load, the screen stays black (no crossfade from a previous scene):

stateDiagram-v2
    [*] --> WAIT_IBL: "First load"
    WAIT_IBL --> WAIT_IBL: "IBL in progress..."
    WAIT_IBL --> FADE_IN: "IBL complete"
    FADE_IN --> IDLE: "Alpha reaches 0"

WAIT_IBL: transition_alpha = 1.0 (fully opaque black) — the screen is black during the first few frames.

FADE_IN: Alpha decreases from 1.0 → 0.0 over 250ms.

Chapter 7 — IBL Generation (Progressive, Multi-Frame)

Once the HDR texture is uploaded, the IBL Coordinator (src/ibl_coordinator.c) takes over. It computes three maps across multiple frames to avoid GPU stalls.

7.1 — The Three IBL Maps

graph TB
    HDR("HDR Environment Map
2048×1024 equirectangular
GL_RGBA16F") --> SPEC
    HDR --> IRR
    HDR --> LUM

    SPEC("Specular Prefilter Map
1024×1024 × 5 mip levels
Compute: spmap.glsl")
    IRR("Irradiance Map
64×64
Compute: irmap.glsl")
    LUM("Luminance Reduction
1×1 average
Compute: luminance_reduce")

    SPEC -->|"Per-pixel reflection
roughness → mip level"| PBR("PBR Shader")
    IRR -->|"Diffuse hemisphere
integral"| PBR
    LUM -->|"Auto exposure
threshold"| PP("Post-Process")

    classDef keyFunc fill:#fff59d,stroke:#f9a825,stroke-width:2px,color:#2d2d2d
    classDef compute fill:#f3e5f5,stroke:#ab47bc,stroke-width:1.5px,color:#2d2d2d
    classDef target fill:#e3f2fd,stroke:#42a5f5,stroke-width:1.5px,color:#2d2d2d

    class HDR keyFunc
    class SPEC,IRR,LUM compute
    class PBR,PP target

7.2 — Progressive Slicing Strategy

To avoid frame spikes, each mip level is subdivided into slices processed over consecutive frames:

gantt
    title Progressive IBL Generation Timeline
    dateFormat x
    axisFormat Frame %s

    section Luminance
    Luminance Pass 1       :lum1, 0, 1000
    Luminance Wait (fence) :lum2, 1000, 2000
    Luminance Readback     :lum3, 2000, 3000

    section Specular Mip 0
    Slice 1/24             :s1, 3000, 4000
    Slice 2/24             :s2, 4000, 5000
    Slice ...              :s3, 5000, 6000
    Slice 24/24            :s4, 6000, 7000

    section Specular Mip 1
    Slices 1-8             :m1, 7000, 9000

    section Specular Mips 2-4
    Grouped dispatch       :m3, 9000, 10000

    section Irradiance
    Slices 1-12            :i1, 10000, 12000

    section Done
    IBL Complete → Fade In :ibl_done, 12000, 13000

7.3 — IBL State Machine

enum IBLState {
    IBL_STATE_IDLE,             // No work
    IBL_STATE_LUMINANCE,        // Pass 1: luminance reduction
    IBL_STATE_LUMINANCE_WAIT,   // Wait for readback fence
    IBL_STATE_SPECULAR_INIT,    // Allocate specular texture
    IBL_STATE_SPECULAR_MIPS,    // Progressive mip generation
    IBL_STATE_IRRADIANCE,       // Progressive irradiance convolution
    IBL_STATE_DONE              // All maps ready
};

Chapter 8 — The Main Loop

app_run() (src/app.c) is the heartbeat — a classic uncapped game loop with fixed-timestep physics.

graph TD
    A("① glfwPollEvents() — Keyboard, mouse, resize")
    A --> B("② Time & FPS — delta_time, frame_count")
    B --> C("③ Camera Physics — Fixed 60Hz, smooth rotation lerp")
    C --> D("④ Geometry Update — if subdivisions changed")
    D --> E("⑤ app_update() — Process input state")
    E --> F("⑥ renderer_draw_frame() — THE BIG ONE")
    F --> G("⑦ Tracy screenshots — profiling")
    G --> H("⑧ glfwSwapBuffers() — Present to screen")
    H -->|"next frame"| A

    classDef keyFunc fill:#fff59d,stroke:#f9a825,stroke-width:2px,color:#2d2d2d
    classDef loopNode fill:#e3f2fd,stroke:#42a5f5,stroke-width:1.5px,color:#2d2d2d
    classDef subsystem fill:#ffffff,stroke:#aaaaaa,stroke-width:1.5px,color:#444444

    class F keyFunc
    class A,B,C,D,E,G loopNode
    class H subsystem

8.1 — Deferred Resize

Window resize events are deferred — the GLFW callback only records the new dimensions. The actual FBO recreation happens at the start of the next frame, outside the callback's limited context.

8.2 — Camera Fixed-Timestep Integration

app->camera.physics_accumulator += (float)app->delta_time;
while (app->camera.physics_accumulator >= app->camera.fixed_timestep) {
    camera_fixed_update(&app->camera);  // Velocity, friction, bobbing
    app->camera.physics_accumulator -= app->camera.fixed_timestep;
}

// Smooth rotation (exponential interpolation)
float alpha = app->camera.rotation_smoothing;  // ~0.1
app->camera.yaw   += (app->camera.yaw_target   - app->camera.yaw)   * alpha;
app->camera.pitch += (app->camera.pitch_target - app->camera.pitch) * alpha;
camera_update_vectors(&app->camera);

This ensures deterministic physics regardless of frame rate, while rotation stays smooth via per-frame interpolation.

Chapter 9 — Rendering a Frame

renderer_draw_frame() (src/renderer.c) orchestrates the full rendering pipeline.

9.1 — High-Level Architecture

graph TD
    A("GPU Profiler Begin") --> B("postprocess_begin() — Bind Scene FBO, Clear")
    B --> C("camera_get_view_matrix()")
    C --> D("glm_perspective() — FOV=60°, near=0.1, far=1000")
    D --> E("ViewProj = Proj × View")
    E --> G1("🌅 Pass 1: Skybox — depth disabled")
    G1 --> G2("🔢 Pass 2: Sphere Sorting — GPU Bitonic")
    G2 --> G3("🔮 Pass 3: PBR Spheres — instanced billboard draw")
    G3 --> H("✨ postprocess_end() — 7-Stage Pipeline")
    H --> I("🖥️ UI Overlay + Env Transition")

    classDef keyFunc fill:#fff59d,stroke:#f9a825,stroke-width:2px,color:#2d2d2d
    classDef loopNode fill:#e3f2fd,stroke:#42a5f5,stroke-width:1.5px,color:#2d2d2d
    classDef setup fill:#ffffff,stroke:#aaaaaa,stroke-width:1.5px,color:#444444
    classDef postfx fill:#fce4ec,stroke:#c2185b,stroke-width:1.5px,color:#2d2d2d

    class G1,G2,G3 keyFunc
    class A,B,C,D,E setup
    class H,I postfx

9.2 — Pass 1: Skybox

The skybox is drawn first, with depth testing disabled. It uses a fullscreen quad trick:

// background.vert — reconstruct world-space ray
gl_Position = vec4(in_position.xy, 1.0, 1.0);  // Depth = 1.0 (far plane)
vec4 pos = m_inv_view_proj * vec4(in_position.xy, 1.0, 1.0);
RayDir = pos.xyz / pos.w;  // Reconstructed world-space ray

// background.frag — equirectangular sampling of the HDR
vec2 uv = SampleEquirectangular(normalize(RayDir));
vec3 envColor = textureLod(environmentMap, uv, blur_lod).rgb;
envColor = clamp(envColor, vec3(0.0), vec3(200.0));  // NaN protection + anti-fireflies
FragColor = vec4(envColor, luma);  // Alpha = luma for FXAA
VelocityOut = vec2(0.0);          // No motion for skybox

9.3 — Pass 2: Sphere Sorting (GPU Bitonic Sort)

For transparent billboard rendering, spheres must be drawn back-to-front:

9.4 — Pass 3: PBR Spheres — Billboard Ray-Tracing

This is the core rendering pass. A single draw call renders all 100 spheres:

9.5 — The Billboard Fragment Shader (Ray-Sphere Intersection)

The fragment shader (pbr_ibl_billboard.frag) is where the real magic happens. Instead of shading a rasterized mesh, it analytically intersects a ray with a perfect sphere:

// Analytical ray-sphere intersection
vec3 oc = rayOrigin - center;
float b = dot(oc, rayDir);
float c = dot(oc, oc) - radius * radius;
float discriminant = b * b - c;  // >0 = hit, <0 = miss
if (discriminant < 0.0) discard;
float t = -b - sqrt(discriminant);  // nearest intersection
vec3 hitPos = rayOrigin + t * rayDir;
vec3 N = normalize(hitPos - center);  // perfect analytic normal

graph TD
    R("🔦 Build Ray — origin=camPos, dir=normalize(WorldPos-camPos)")
    R --> INT("📐 Ray-Sphere Intersection — discriminant = b² - c")
    INT --> HIT{"Hit?"}
    HIT -->|"No — disc < 0"| DISCARD("❌ discard — pixel outside sphere")
    HIT -->|"Yes"| HITPOS("✅ hitPos = origin + t × dir")
    HITPOS --> NORMAL("N = normalize(hitPos - center) — perfect normal")
    HITPOS --> DEPTH("gl_FragDepth = project(hitPos) — correct Z-buffer")
    NORMAL --> PBR("V = -rayDir")
    PBR --> FRESNEL("Fresnel-Schlick")
    PBR --> GGX("Smith-GGX Geometry")
    PBR --> NDF("GGX NDF Distribution")
    FRESNEL & GGX & NDF --> SPEC("IBL Specular — prefilterMap × brdfLUT")
    PBR --> DIFF("IBL Diffuse — irradiance(N) × albedo")
    SPEC & DIFF --> FINAL("color = Diffuse + Specular")
    FINAL --> AA("Edge Anti-Aliasing — smoothstep on discriminant")
    AA --> ALPHA("FragColor = vec4(color, edgeFactor) — premultiplied alpha")

    classDef keyFunc fill:#fff59d,stroke:#f9a825,stroke-width:2px,color:#2d2d2d
    classDef compute fill:#e3f2fd,stroke:#42a5f5,stroke-width:1.5px,color:#2d2d2d
    classDef entryExit fill:#fce4ec,stroke:#c2185b,stroke-width:2px,color:#2d2d2d
    classDef subsystem fill:#ffffff,stroke:#aaaaaa,stroke-width:1.5px,color:#444444

    class R,INT,HIT keyFunc
    class HITPOS,NORMAL,DEPTH,PBR compute
    class FRESNEL,GGX,NDF,SPEC,DIFF subsystem
    class FINAL,AA,ALPHA,DISCARD entryExit

Analytical Edge Anti-Aliasing

float pixelSizeWorld = (2.0 * clipW) / (proj[1][1] * screenHeight);
float edgeFactor = smoothstep(0.0, 1.0, discriminant / (2.0 * radius * pixelSizeWorld));
FragColor = vec4(color * edgeFactor, edgeFactor);  // premultiplied alpha

Billboard Projection

Chapter 10 — Post-Processing Pipeline

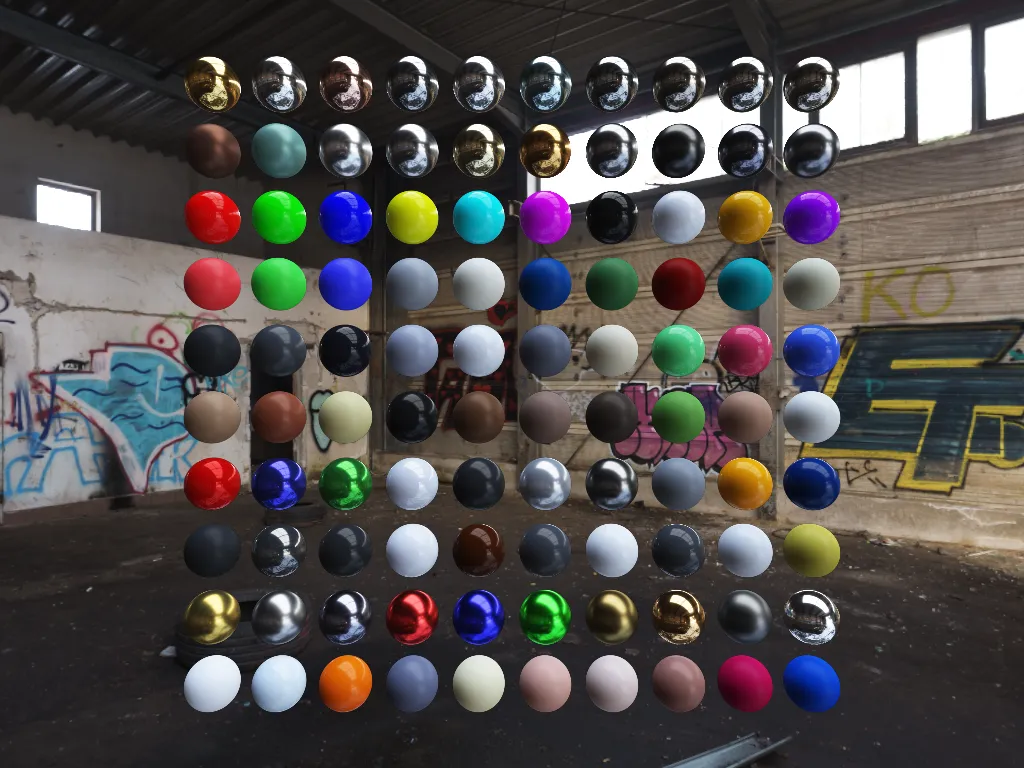

After the 3D scene is rendered into the MRT FBO, postprocess_end() applies up to 8 effects in a carefully ordered pipeline.

10.1 — The 7-Stage Pipeline

graph TD
    A("Memory Barrier — flush MRT writes")

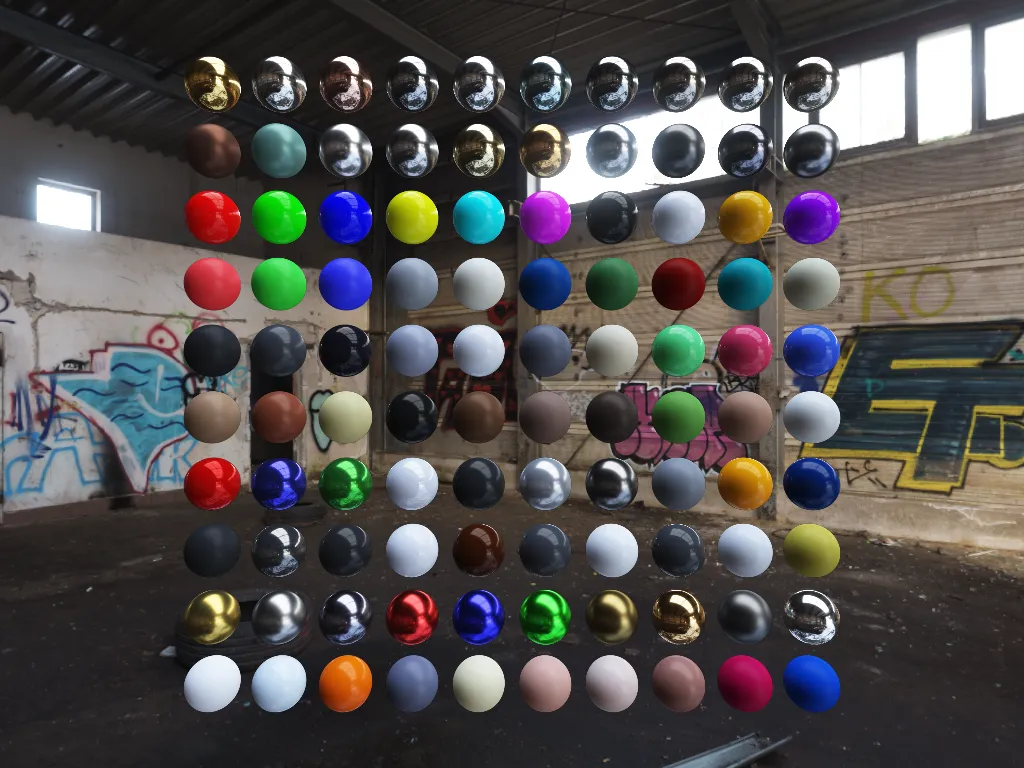

    A --> B("① Bloom — Downsample → Threshold → Upsample")
    B --> C("② Depth of Field — CoC → Bokeh blur")

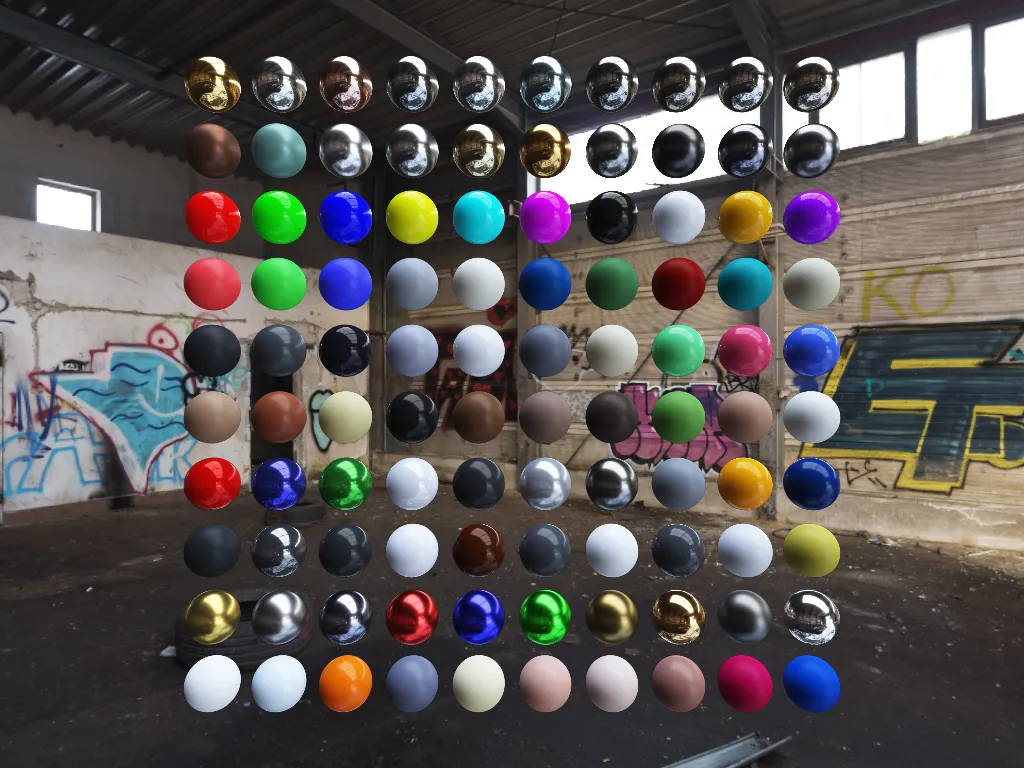

    C --> D("③ Auto-Exposure — Luminance reduction → PBO readback")

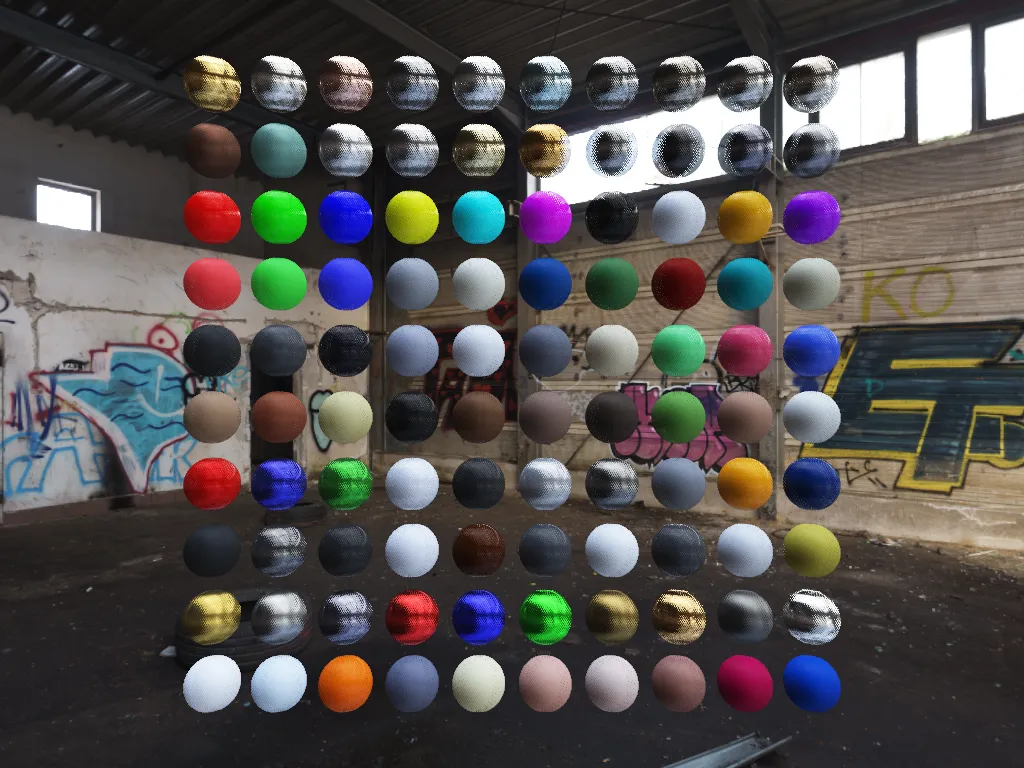

    D --> E("④ Motion Blur — Tile-max velocity → Neighbor-max")
    E --> F("⑤ Bind 9 Textures + Upload UBO")
    F --> H("Draw fullscreen quad")
    H --> J("Vignette")
    J --> K("Film Grain")
    K --> L("White Balance")
    L --> M("Color Grading — Sat, Contrast, Gamma, Gain")

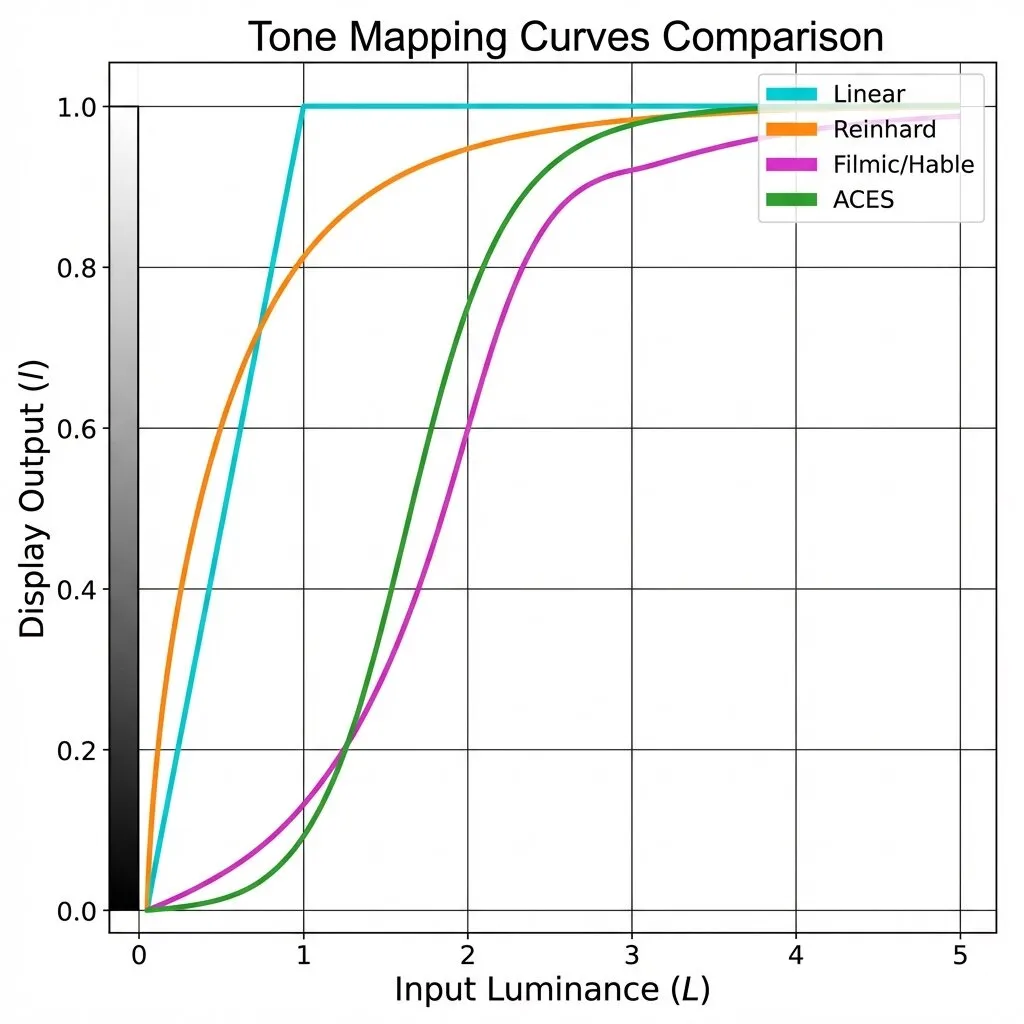

    M --> N("Tonemapping — filmic curve")
    N --> O("3D LUT Grading")

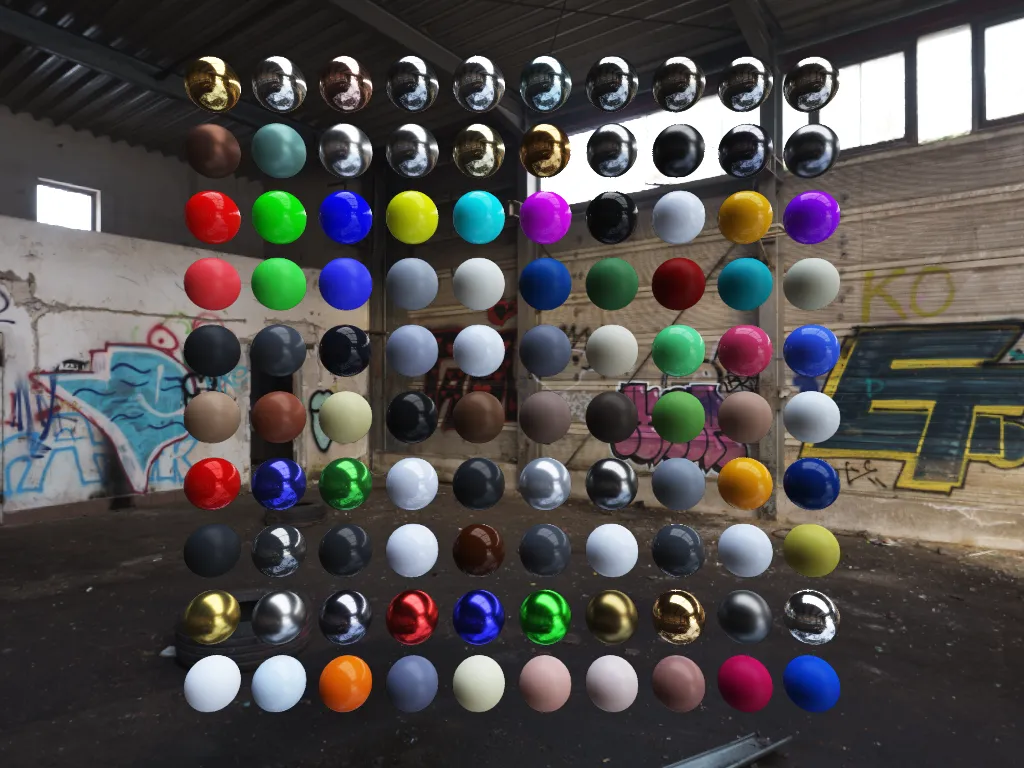

    O --> P("FXAA")
    P --> Q("Dithering — anti-banding")
    Q --> R("Atmospheric Fog")

    classDef keyFunc fill:#fff59d,stroke:#f9a825,stroke-width:2px,color:#2d2d2d
    classDef compute fill:#f3e5f5,stroke:#ab47bc,stroke-width:1.5px,color:#2d2d2d
    classDef shader fill:#e3f2fd,stroke:#42a5f5,stroke-width:1.5px,color:#2d2d2d
    classDef subsystem fill:#ffffff,stroke:#aaaaaa,stroke-width:1.5px,color:#444444

    class A,F,H subsystem
    class B,C,D,E compute
    class J,K,L,M,N,O,P,Q,R shader

10.2 — Post-Processing Effects Gallery

Here is the front view render with different effects enabled individually — each image shows a single effect applied to the same scene:

No post-processing (raw)

FXAA (fast anti-aliasing)

Bloom

Depth of Field

Auto-Exposure

Motion Blur

Sony A7S III Cinematic Profile

10.3 — Shader Optimization via Conditional Compilation

The post-process fragment shader uses compile-time #defines to eliminate branches:

#ifdef OPT_ENABLE_BLOOM
    color += bloomTexture * bloomIntensity;
#endif

#ifdef OPT_ENABLE_FXAA
    color = fxaa(color, uv, texelSize);
#endif

A 32-entry LRU cache stores compiled shader variants for different effect flag combinations. Switching effects triggers lazy recompilation only for new combinations.

10.4 — Tonemapping Curves

10.5 — Exposure Adaptation

Chapter 11 — The First Visible Frame

Let's trace what actually appears on screen during the first seconds:

Startup Timeline

Steady-State Frame

Chapter 12 — GPU Memory Budget

Here's an estimate of VRAM consumption at steady state:

Textures

Buffers

Total Estimate

💡 Dominant Cost: The HDR environment map + bloom chain + scene FBOs dominate VRAM usage. The geometry itself (100 billboard quads × 4 vertices in default mode) is negligible — the real sphere computation happens in the fragment shader via ray-tracing.

Gallery: Multi-Angle Views

The engine supports automated captures from different camera angles, used for visual regression testing:

Front	Left	Right
Top	Bottom	Sony A7S III

Full Data Flow Pipeline

graph TD
    POLL("① CPU — glfwPollEvents()") --> TIME("② CPU — Δt calculation")
    TIME --> CAM("③ CPU — Camera physics 60Hz")
    CAM --> SORT("④ CPU → GPU — Sphere sorting")
    SORT --> FBO("⑤ GPU — Bind Scene FBO, Clear")
    FBO --> SKY("🌅 Skybox Pass — Equirectangular sampling")
    SKY --> SPHERES("🔮 Billboard Pass — 1 draw call, 100 instances, ray-tracing")
    SPHERES --> BLOOM("✨ Bloom + DoF + Auto-Exposure + Motion Blur")
    BLOOM --> COMP("🎬 Final Composite — 9 textures, UBO, fullscreen quad")
    COMP --> UI("🖥️ UI Overlay + Profiler + Transition")
    UI --> SWAP("⑩ glfwSwapBuffers()")

    classDef cpu fill:#e3f2fd,stroke:#42a5f5,stroke-width:1.5px,color:#2d2d2d
    classDef gpu fill:#fff59d,stroke:#f9a825,stroke-width:2px,color:#2d2d2d
    classDef postfx fill:#f3e5f5,stroke:#ab47bc,stroke-width:1.5px,color:#2d2d2d
    classDef subsystem fill:#ffffff,stroke:#aaaaaa,stroke-width:1.5px,color:#444444

    class POLL,TIME,CAM,SORT cpu
    class FBO,SKY,SPHERES gpu
    class BLOOM,COMP postfx
    class UI,SWAP subsystem

Glossary

Quick reference for technical terms used in this article, with links to official documentation.

Languages, APIs & Standards

3D Rendering — Core Concepts

OpenGL GPU Objects

Ray-Tracing & Geometry

PBR & Lighting

Post-Processing

Architecture & Performance

Mathematics & Camera

Sorting Algorithms

Multithreading

Miscellaneous

Conclusion

suckless-ogl demonstrates that a complete PBR engine can be built with readable C11 code, a clear rendering pipeline, and GPU performance measured in milliseconds. The design choices — billboard ray-tracing instead of meshes, async HDR loading, progressive IBL, modular post-processing — show how to solve real graphics problems with elegance.

The full source code is available on GitHub, and the detailed technical documentation at yoyonel.github.io/suckless-ogl.

In upcoming articles, we'll explore the Vulkan and NVRHI projects that push these concepts even further.
